Custom Metal Bending: How Does It Work?

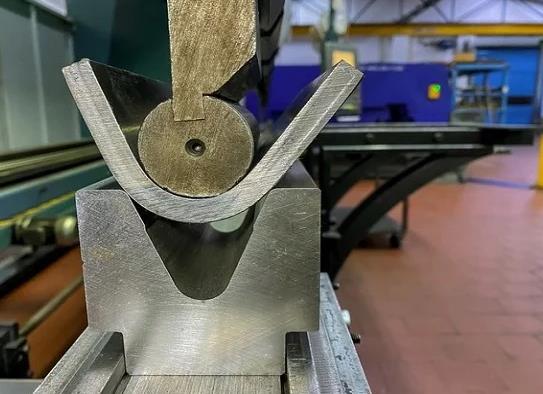

Custom metal bending is a fundamental process used in various industries to manipulate metal sheets or profiles into desired shapes and configurations. This versatile technique offers exceptional flexibility in creating a wide range of components with precise bends and angles. Let's explore how custom metal bending works and its key aspects. [caption id="attachment_3958" align="aligncenter" width="543"]Custom Metal Bending: How Does It Work? Custom Metal Bending: How Does It Work?[/caption]

Understanding the Process

Material Preparation

  • Material Selection: Custom metal bending can be applied to a variety of materials, including steel, aluminum, stainless steel, and copper. The choice of material depends on factors such as strength requirements, corrosion resistance, and aesthetic preferences.
  • Sheet Thickness: The thickness of the metal sheet or profile determines the bending capabilities and equipment requirements. Custom bending can accommodate various material thicknesses, from thin-gauge sheets to heavy-duty profiles.

Tooling and Equipment

  • Bending Machines: Custom metal bending utilizes specialized equipment such as press brakes, roll benders, and tube benders. These machines apply force to deform the metal, creating precise bends according to specified parameters.
  • Tooling Selection: Different tooling options, including dies, punches, and mandrels, are used to achieve specific bend angles, radii, and profiles. The selection of tooling depends on the geometry of the desired bend and the material being processed.

Bending Techniques

Press Brake Bending

  • Principle: Press brake bending is a common method that involves clamping the metal sheet between a punch and a die. The press brake applies downward force to deform the material, creating bends along predetermined locations.
  • Precision Control: CNC-controlled press brakes offer precise control over bend angles, depths, and positions. Advanced software allows operators to program complex bending sequences and ensure consistent results.

Roll Bending

  • Application: Roll bending is ideal for shaping cylindrical or curved components, such as tubes, pipes, and profiles. The process involves passing the metal between a series of rollers that gradually apply bending force along the length of the material.
  • Versatility: Roll bending machines can produce a variety of shapes, including arcs, cylinders, cones, and spirals, by adjusting the position and configuration of the rollers.

Considerations for Custom Metal Bending

Bend Allowance and Springback

  • Bend Allowance: Calculating the bend allowance is crucial for achieving accurate dimensions in bent parts. It accounts for material elongation during bending and ensures the final component matches the desired specifications.
  • Springback: Metal materials exhibit elastic deformation during bending, causing them to spring back slightly after the bending force is removed. Understanding and compensating for springback is essential for achieving the desired bend angle and geometry.

Tooling Setup and Alignment

  • Tooling Alignment: Proper alignment of tooling components, including dies, punches, and backgauges, is critical for achieving uniform bends and avoiding defects such as twisting or buckling.
  • Die Selection: Choosing the appropriate die profile and radius ensures smooth material flow and minimizes the risk of surface imperfections or wrinkles in the bent parts.

Advantages of Custom Metal Bending

Design Flexibility

  • Versatile Shapes: Custom metal bending enables the fabrication of a wide range of shapes and configurations, including angles, channels, curves, and profiles, to suit diverse design requirements.
  • Complex Geometry: With advanced bending techniques and tooling options, manufacturers can achieve complex geometries and intricate features in bent components, expanding design possibilities.

Cost-Effectiveness

  • Material Optimization: Custom metal bending minimizes material waste by precisely shaping metal sheets or profiles to match the required dimensions, reducing material costs and optimizing resource utilization.
  • Efficient Production: By streamlining the manufacturing process and minimizing secondary operations, custom bending enhances production efficiency and reduces overall production costs.

Production Efficiency

  • High Throughput: Modern bending equipment, such as CNC press brakes and automated roll benders, offer high-speed operation and rapid tooling changeovers, enabling efficient production of large quantities of bent components.
  • Repeatable Accuracy: CNC-controlled bending machines ensure consistent bend angles, dimensions, and tolerances across multiple parts, maintaining quality standards and minimizing scrap rates.

Conclusion

Custom metal bending is a versatile manufacturing process that offers unparalleled design flexibility, precision, and efficiency. By leveraging advanced equipment, tooling, and techniques, manufacturers can produce high-quality bent components to meet the diverse needs of various industries. To explore the capabilities of custom metal bending for your applications, visit custom metal bending and discover how it can elevate your product development and manufacturing processes.
